Description

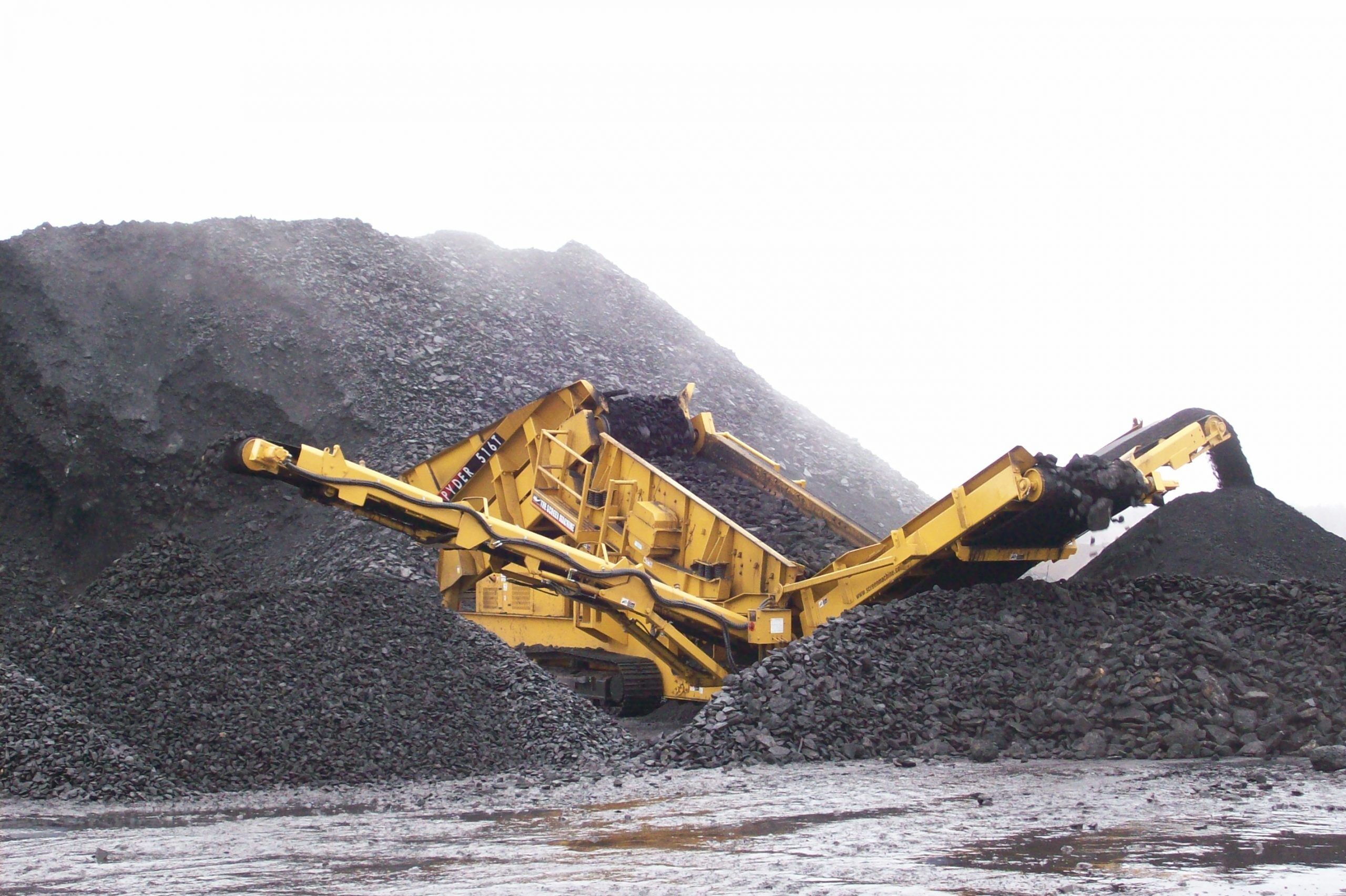

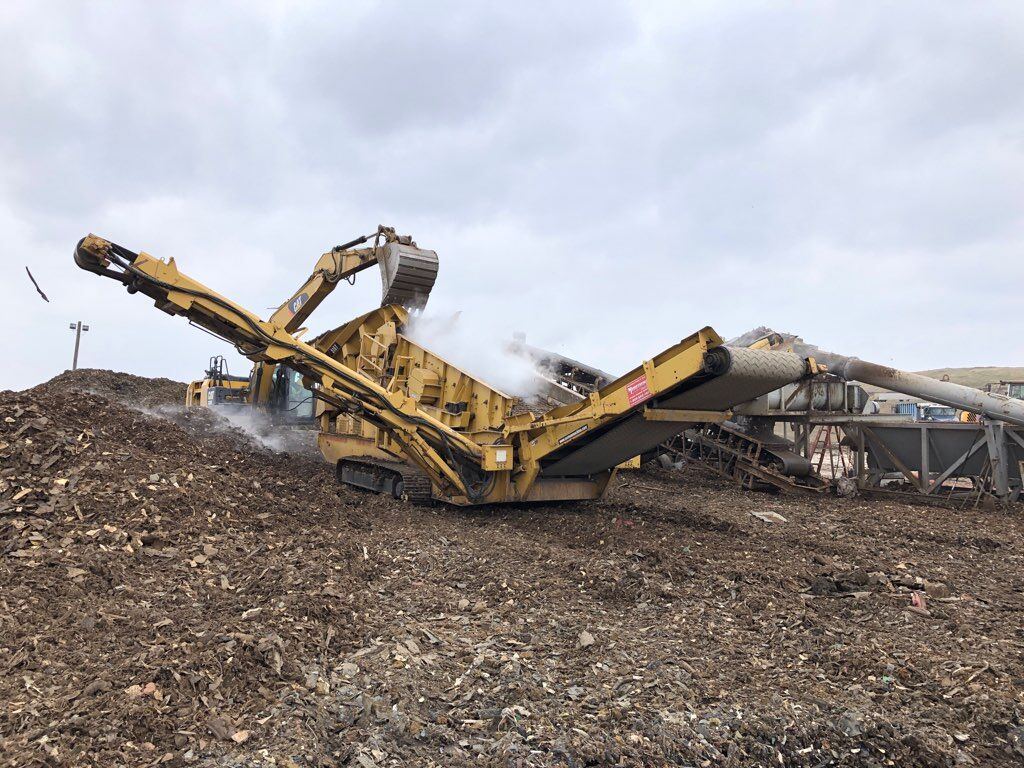

2020 Screen Machine 516T Spyder Track, 2-Deck Screener
Serial # 516T-1129 Hours: 1854
SCREENS
- 5’-0” x 16’-0” (1.52m x 4.88m) top deck
- 5’-0” x 14’-0” (1.52m x 4.27m) bottom deck
- Double-deck, two-bearing screen
- Adjustable screen angle (three operating positions)3/8” (9.5mm) US-made grade 80 steel screen box frame
- Smooth Start®
- Technology (US Patent #6,669,026)
- Screen box splits from Unders Conveyor for ease of access
- Top deck wire screen cloth (included)
- Bottom deck wire cloth or harp deck screens (included)
POWER SYSTEMS and CONTROLS
- CAT 4.4 110 HP Tier IV Final diesel engine
- 75 gallon (284L) fuel tank with lockable fuel cap
- 120 gallon (454L) baffled and lockable hydraulic tank
- Hydraulic oil cooler
- Lockable control panels
- Four (4) emergency stops / plus (1) stop button on wireless remote
- Wireless remote control operation and travel
STRUCTURE
- True three-sided loading at feed hopper
- ½” (13mm) thick US-made grade 80 steel walls
- 1” (25.4mm) thick UHMW plastic impact bed liners
- 5” (130mm) diameter impact idler cans
- 48” (1,219mm) wide 3 ply 600 PIW with remote control variable speed
- Dual motor wrap drive with 18” (457mm) head pulley
- Low feed height – 10’-2” (3.1m) at end of hopper
- Feed height lowers to 8’-3” (2.5m) when tailgate is folded down
- 8.5 (struck) – 12 Cu. Yard (heaped) (6.5 – 9.17 Cu. Meter) hopper capacity
- Feed length 15’-9” (4.8m); Feed width 7’-0” (2.13m)
- Wireless remote variable feeder belt speed control
- Feed Match: 4 – 6 Cu. Yard loader and 1 – 3 Cu. Yard excavator
• Remote control vibratory feeder speed (600-850 RPM)

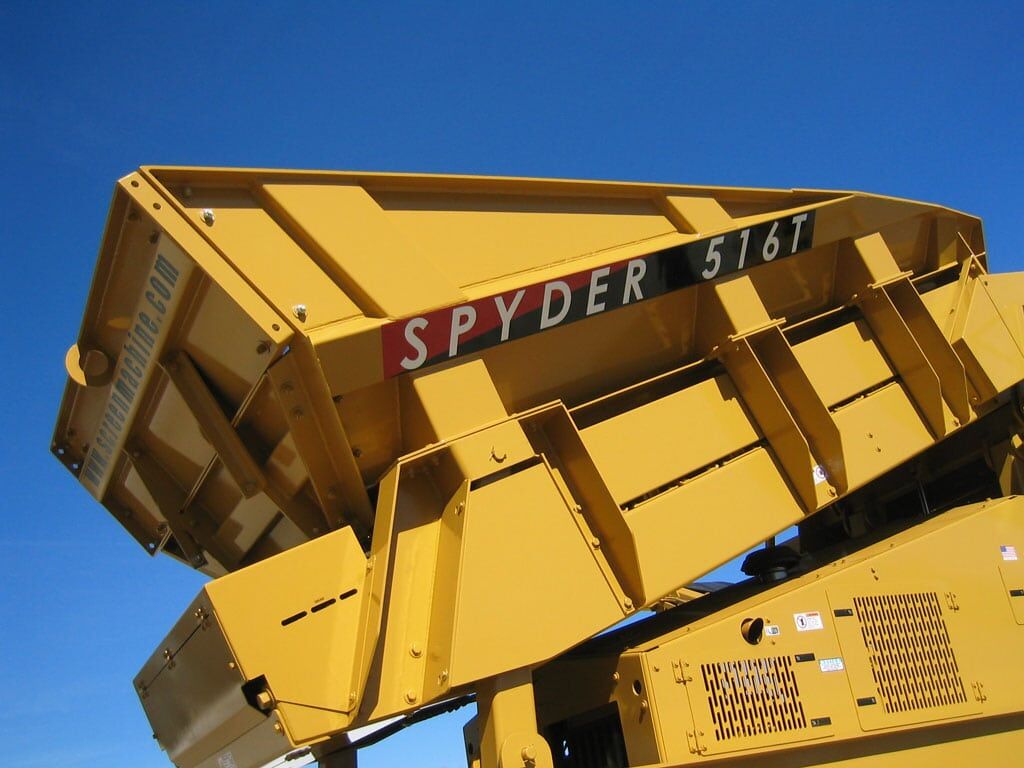

FEEDER
- US-made grade 80 unibody steel frame construction with fixed catwalks
- Integrity of frame eliminates need for outriggers or landing gear
- Heavy-duty unibody frame design to support most harsh conditions
- All discharge conveyors are at far opposite end of feeder
- 48″ (1,219mm) wide 3-ply 600 PIW with remote control variable speed
- Dual motor wrap drive with 18″ (457mm) head pulley
- Low feed height – 10’-3″ (3.1m) at end of hopper
MAIN/DISCHARGE WINDROW CONVEYORS
- All belts are variable speed with guide rollers, US-made grade 80 chutes
- Discharge belts: oversize and midsize belts are Chevron Cleated Type
- 9′ -4” (2.84m) Oversize discharge height
- 12’- 6” (3.81m) Fines discharge height
- 13’ (3.96m) Midsize discharge height
- Side discharge belt angles: 18°, 21°, 24°, 28° Overs Belt 17° – 22°
