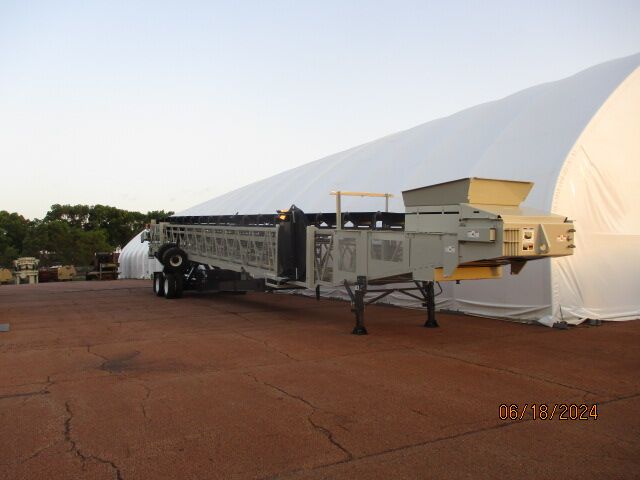

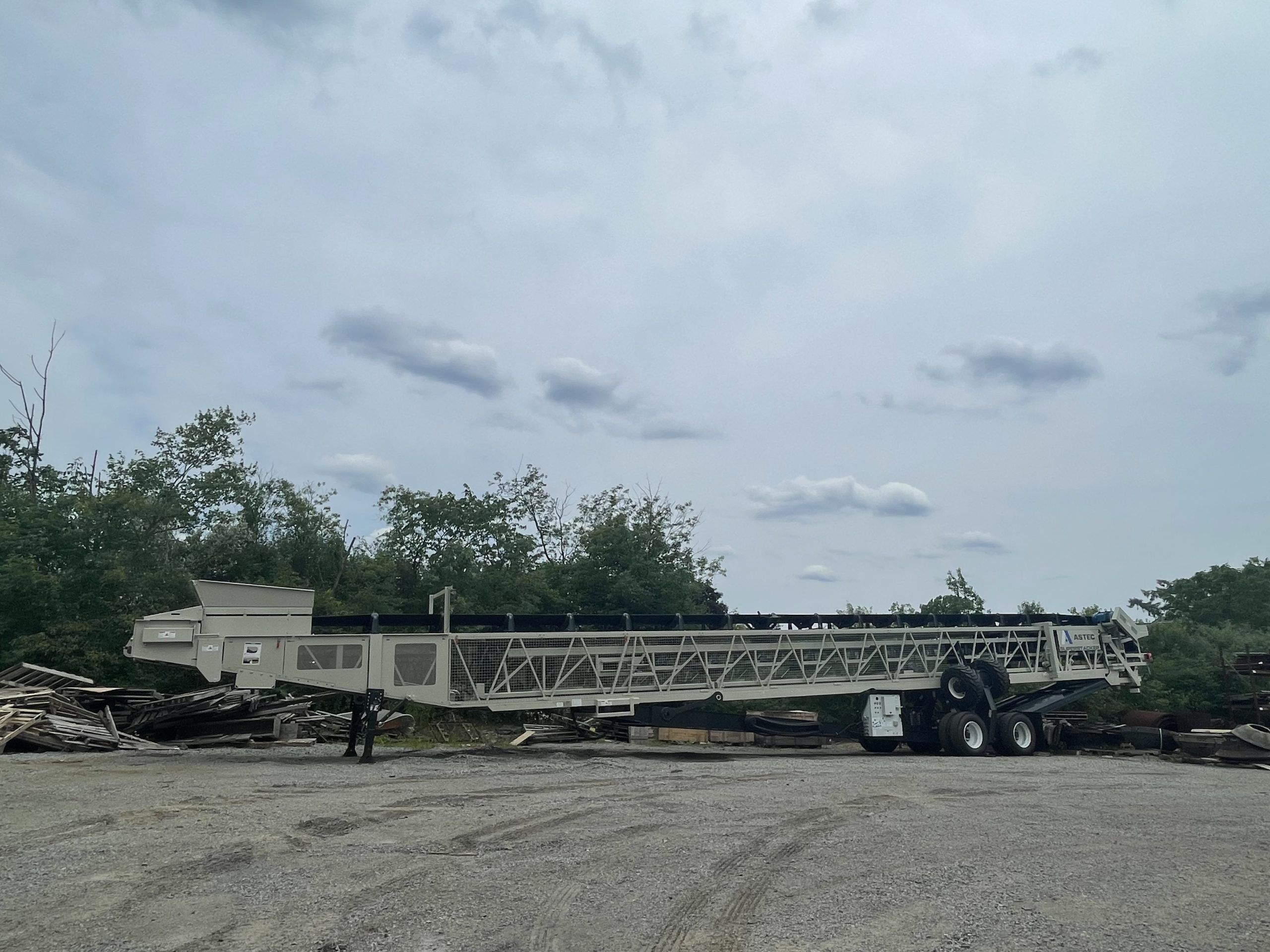

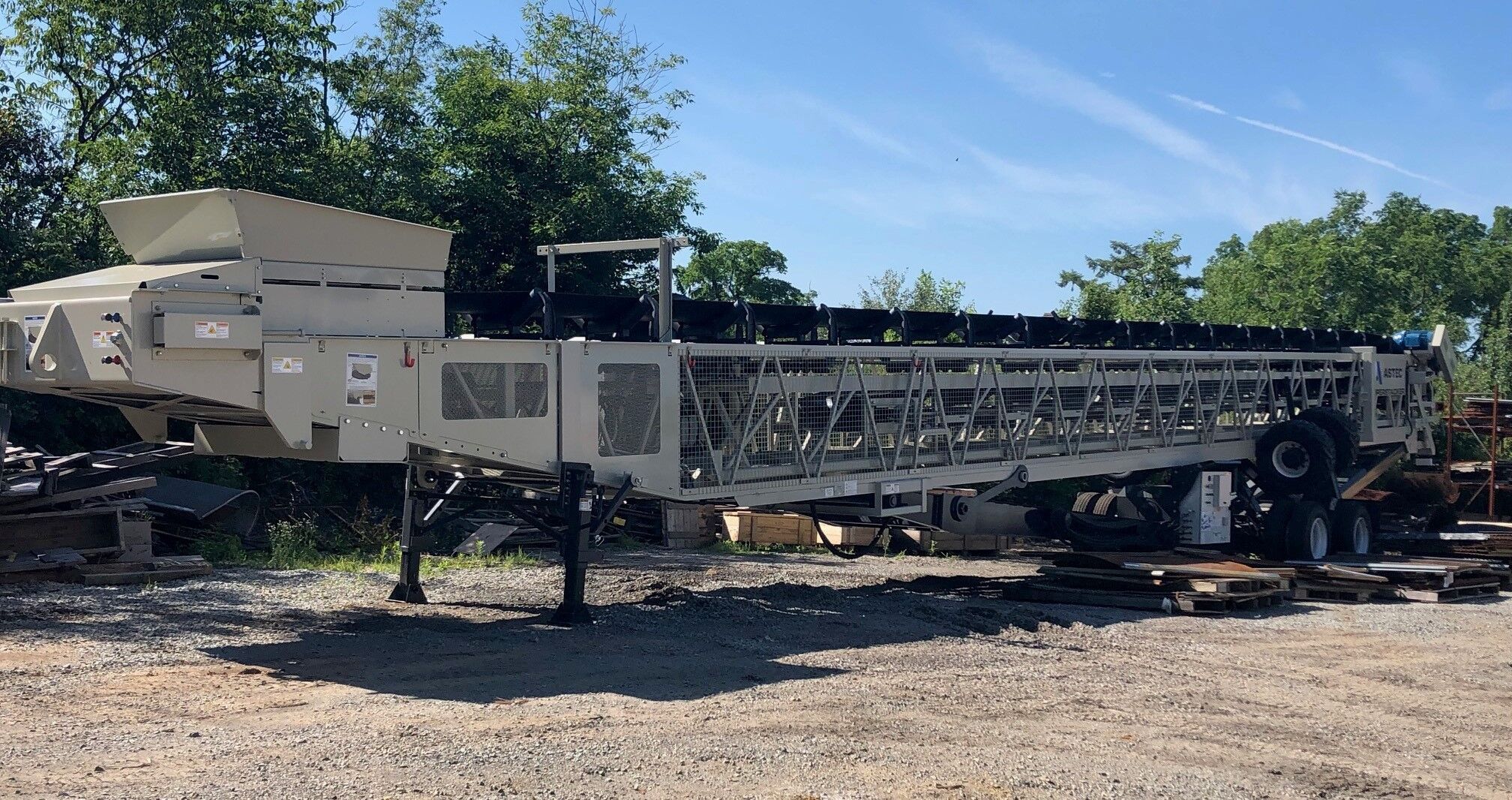

2024 Astec Series 33-36136LP SuperStacker Telescoping Conveyor

Contact us for price at 1 (800) MMC-1626.

Request a Quote Share Page

Request a Quote

60 Month Capital Lease Estimated Payment: $ TBD/month*

Monthly Rental Rate: Call for Pricing

Click to View Product Specifications

SKU: 421130  Categories: , ,

Brand: ASTEC

Description

2024 Astec Series 33-36136LP SuperStacker Telescoping Conveyor

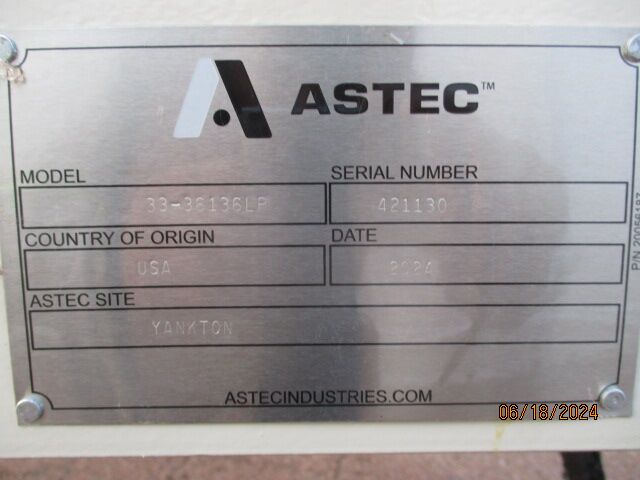

Serial# 421130              Hours: New

  • Conveyor
    – Main conveyor 36” x 80’ [914mm x 24.4m]; 52” [1,321mm] deep frame
    – Stinger Conveyor 36” x 60’ [914mm x 18.3m]; 36” [914mm] deep frame
    – Extension – conveyor extends from 80’ [24.4m] to 136’
    [41.5m] overall length
  • Idlers
    – CEMA B – 5” [127mm] diameter, 3 roll, 35-degree
    troughing idlers on 4’ [1.2m] spacing with close-spaced
    20-degree idlers at feed point, 8’ [2.4m] spacing on flat
    steel return idlers
  • Belt
    – 2 ply 220 PIW, 3/16” x 1/16” [4.8mm x 1.6mm] covers with
    mechanical fasteners
  • Power
    – 850 TPH [771 MTPH] maximum capacity (100 pcf [1.3 ton
    per cubic meter] material). 1,000 TPH [907 MTPH] upgrade
    available. Class I Dodge® shaft mount gear reducers with
    backstops. 3/60/230-460 TEFC electric motors. V-belts,
    motor mounts and guards

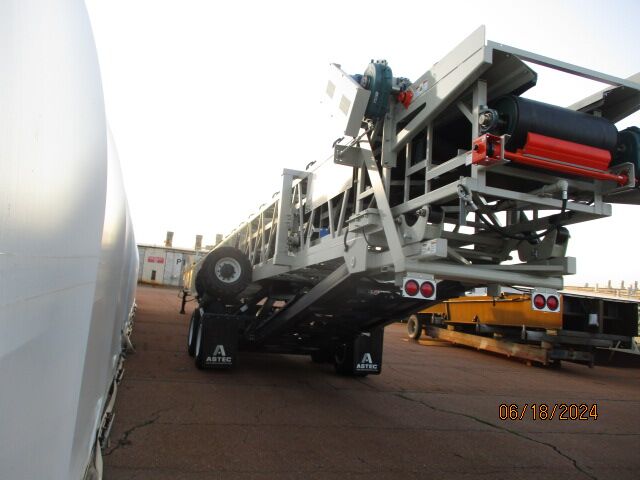

  • Under Carriage
    – Heavy-duty V-type with hydraulic powered twin cylinder
    raise, and cylinder covers
    – Axle – gullwing type axle assembly. Includes walking
    beam travel axle with eight (8) 11-22.5 tires for road
    transport. Also includes four (4) fold-down 385/65D-19.5
    tires for radial travel. Hydraulic cylinders are an option
    – Dual hydraulic planetary power travel drives, 4-wheel drive
    is an option
    – Cam-arm style rear undercarriage, to maintain constant
    wheel radius when raising and lowering the conveyor
    – Center heavy-duty tow eye
    – Kingpin, air brakes, travel, brake and directional lights and
    mudflaps

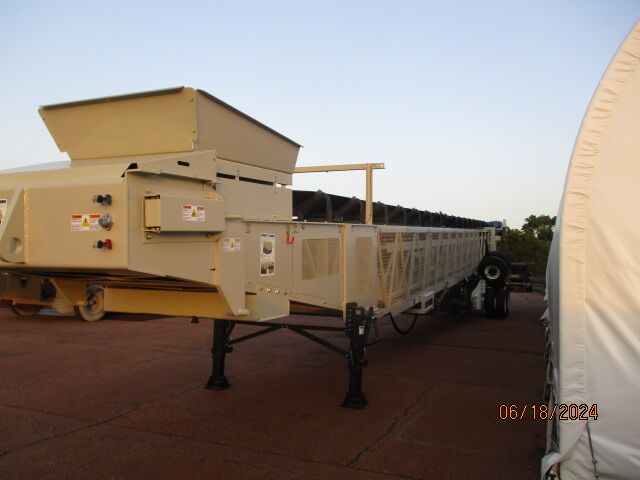

  • Receiving Trough and Radial Hopper
    – Rock box style hopper – 5’ 6” [1.7m] long trough with
    adjustable rubber flashing
  • Anchor Pivot
    – Heavy-duty anchor pivot plate
    Telescoping Travel
    – Hydraulic powered winch mounted at the tail end of the
    main conveyor with ¾” [19mm] wire rope cable
  • Hydraulics
    – 10hp [7.5kW] electric/hydraulic power pack to operate
    undercarriage lift, power travel drives, and hydraulic winch
    for telescoping the conveyor. Includes all hydraulic tubing,
    hoses, gauges, filter and control valves
  • Wizard Touch® Automation
    – Wizard Touch® Automation is an automated stockpiling
    control system with an easy-to-use touch screen interface
    that allows the user to take advantage of preprogrammed
    stockpiling capabilities. Includes capabilities for building
    radial continuous, radial conical, and inline continuous
    stockpiles
  • Electrical
    – NEMA 4 enclosure with main disconnect, mounted on
    the rear undercarriage member; all starters and wiring to
    motors; start/stop pushbuttons for main conveyor motor,
    stinger conveyor motor, hydraulic power pack motor; cord
    holders and supports for power cable; LESS power cable –
    460 volt, 3 phase, 60 hertz power required

Click to View Product Specifications

Additional information

Year

2024

Manufacturer

Astec

Model

Series 33-36136LP

Capacity

1000 tons/hour

Portability

Wheeled Radial

Main Conveyor

36" x 80'

Telescoping Conveyor

36" x 60'

Power

Electric (480V 3 Phase)
