Description

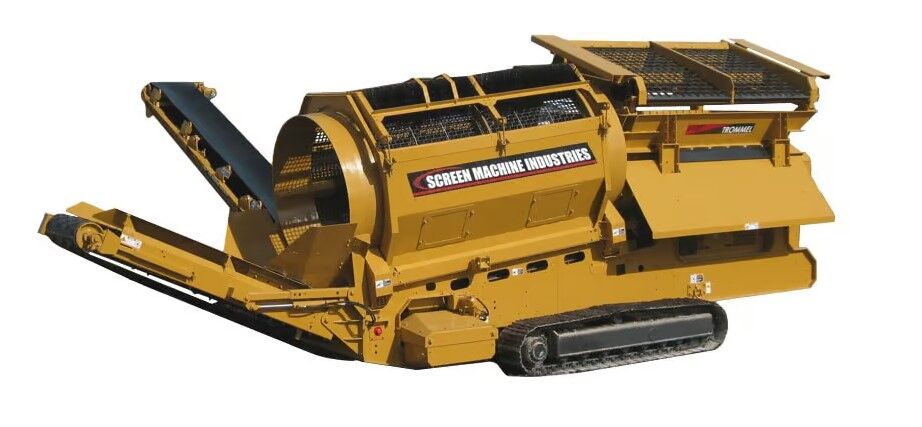

2025 Screen Machine 612T Track, Trommel Screener
Serial # 612T-1172 Hours: 774
Screen
- 6′-0″ x 12′-0″ (1.8m x 3.6m) heavy-duty trommel
- 160 square feet (48.7m Sq.) of actual screening surface area
- Four wheel/twin motor driven trommel drum
- Unique rapid change screen cloth system
- Self-cleaning trommel drum brushes
Engine / Control
- Yanmar 74 HP (55 kw) turbocharged diesel engine – current tier flex
- 70 gallon (264.9L) fuel tank = approx 16 hours of run time
- Wireless remote control operation
Conveyors
- 24″ (.6m) wide side conveyor
- Side conveyor discharge height 12′-9′ (3.9m)
- 36″ (.91m) wide oversize conveyor
- Oversize material conveyor discharge height 6′-1″ (1.9m)
- Guide rollers for conveyor belt centering
- Hydraulic fold-over conveyor for easy portability
Hopper / Feeder
- Large 4.5 cubic yard (3.4 cu. m.) open ended hopper
- Optional hopper extension for 7.5 cubic yards (5.7 cu. m.)
- Low 9′-2″ (2.8m) Hopper feed height
- Variable speed feeder belt
- Optional remote tipping grizzly over hopper
- Optional vibrating screen over hopper
Structure / Undercarriage
- Heavy-duty unibody steel frame design
- Heavy-duty tracked undercarriage
Unique Features
Optional hammermill shredder – US Patent #7,121,487
True tracking windrow capability
