Description

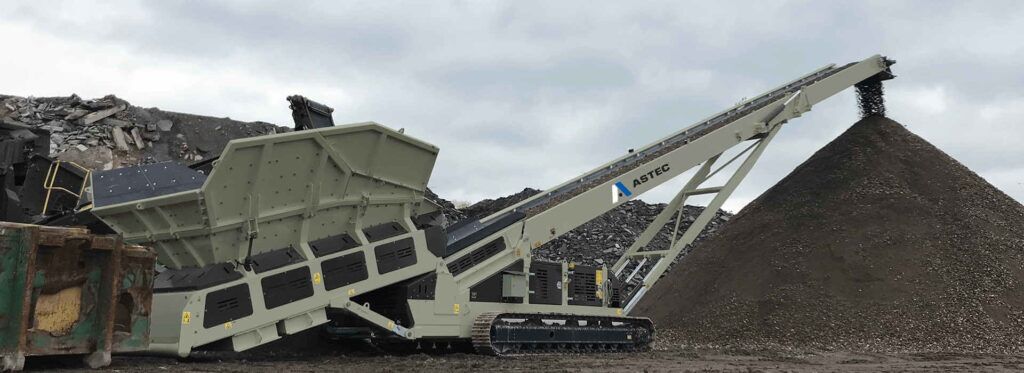

2026 Astec GT 4265HF Hopper Feeder
Serial# 266031 Hours: 16
Main Conveyor-
- 65’ (20m) long x 42” (1050mm) wide
- Variable angle Troughing Rollers. 3 Roll set x 4” (102mm) dia.
- 6” (150mm) Disc return rollers.
- Variable speed, Double, internal hydraulic drives
- Primary spring mounted face scraper
Hopper Feeder
- 42’ (1050mm) wide Feeder belt
- 14’ 2’’ (4.36m) long
- 6’ 9’’ (2.08m) wide Hopper Bin
- Combination impact rollers and impact bars
- 6’’ (150mm) diameter disc return rollers
- Variable speed, Dual Internal planetary Drive motors
- 12’’ (300mm) Hopper Extensions
- Capacity 9.2yds3 (7m3)
Frame
- Heavy Duty structural steel chassis, with integrated folded plate design
- Fully enclosed power unit with hinged access doors
- Hydraulic folding head section as standard
- Hydraulic raise/ lower head section
- Heavy duty track mounted Chassis for complete mobility
Plant Capacity
- Up to 550 USTPH (500 MTPH). (Capacity will vary with conditions)
Power and Hydraulics
EU Stage V/USA Tier 4 Final-
- CAT C 3.6 100Hp (74.5kw) ACERT Industrial Power Unit
- 53 gallon (200 liters) fuel tank. Lockable with side mounted level gauge
- 96 gallon (365 liters) hydraulic reservoir with in line return filter. Lockable with side mounted level gauge.
- Oil cooler
- Engine mounted hydraulic pump to operate all machine functions.
- Hydraulic operated crawler tracks with pendant control for Machine relocation.
- NEMA-4 Rated instrument panel: Hour meter, emergency stops, cold start
- Dual Orbital drive motor driving main conveyor
