Description

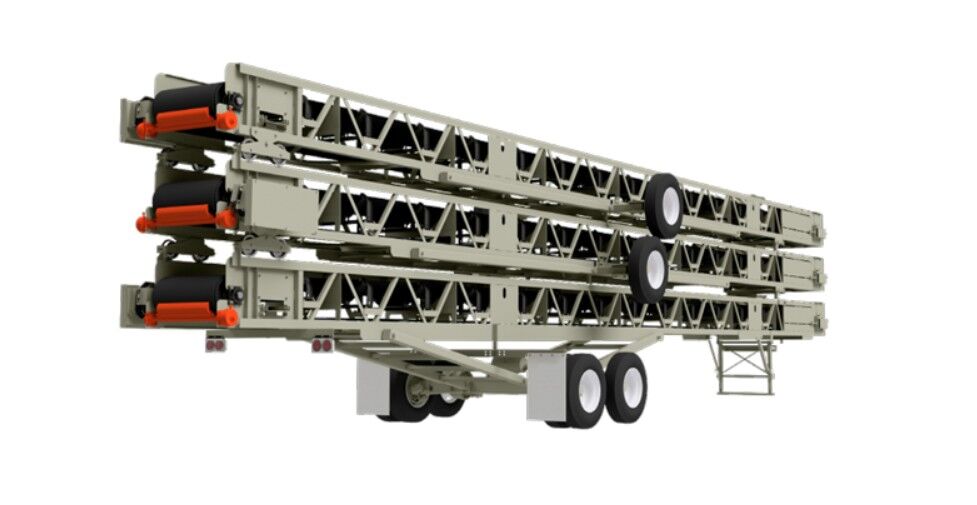

2026 Astec Series 47-3660RS Roll Stack Portable Conveyor
Serial# 421990 Hours: New
3 Pack of Stackable Portable Conveyors
Quantity
- Three (3) 36” x 60’ (914mm x 18.3m) stackable conveyors
- Bottom one equipped with road portable options and will carry two additional stackables on top.
Frame
- 30” (762 mm) deep heavy duty lattice type frame with recessed receiving trough and idlers, to allow for stacking one on another for ease of transportation.
- The conveyors are designed to “roll apart” for easy set-up and transport.
Idlers
- All standard idlers are CEMA B – 5” (127mm) diameter
- 35 degree troughing idlers on 4’ (1.2m) spacing
- 20 degree idlers at feed point, close spacing
- Flat steel return idlers on 10’ (3m) spacing
Belt Drive
- Head end drive
- 20 HP, 3/60/460 TEFC electric motor
- Class I Dodge shaft mount reducer with backstop
- V-belt, motor mounts and guards
- 3/8” (9.5mm) grooved, rubber lagged head pulley
- Steel wing tail pulley
- 12” (305mm) Screw take-up
- Belt Speed – 350 FPM (1.7mps)
Belt
- 2 ply, 220 PIW, 1/8” x 1/16” (3.2mm x 1.6mm) covers with mechanical fasteners
- Belt Cleaner
- Pintle Hitch
