Description

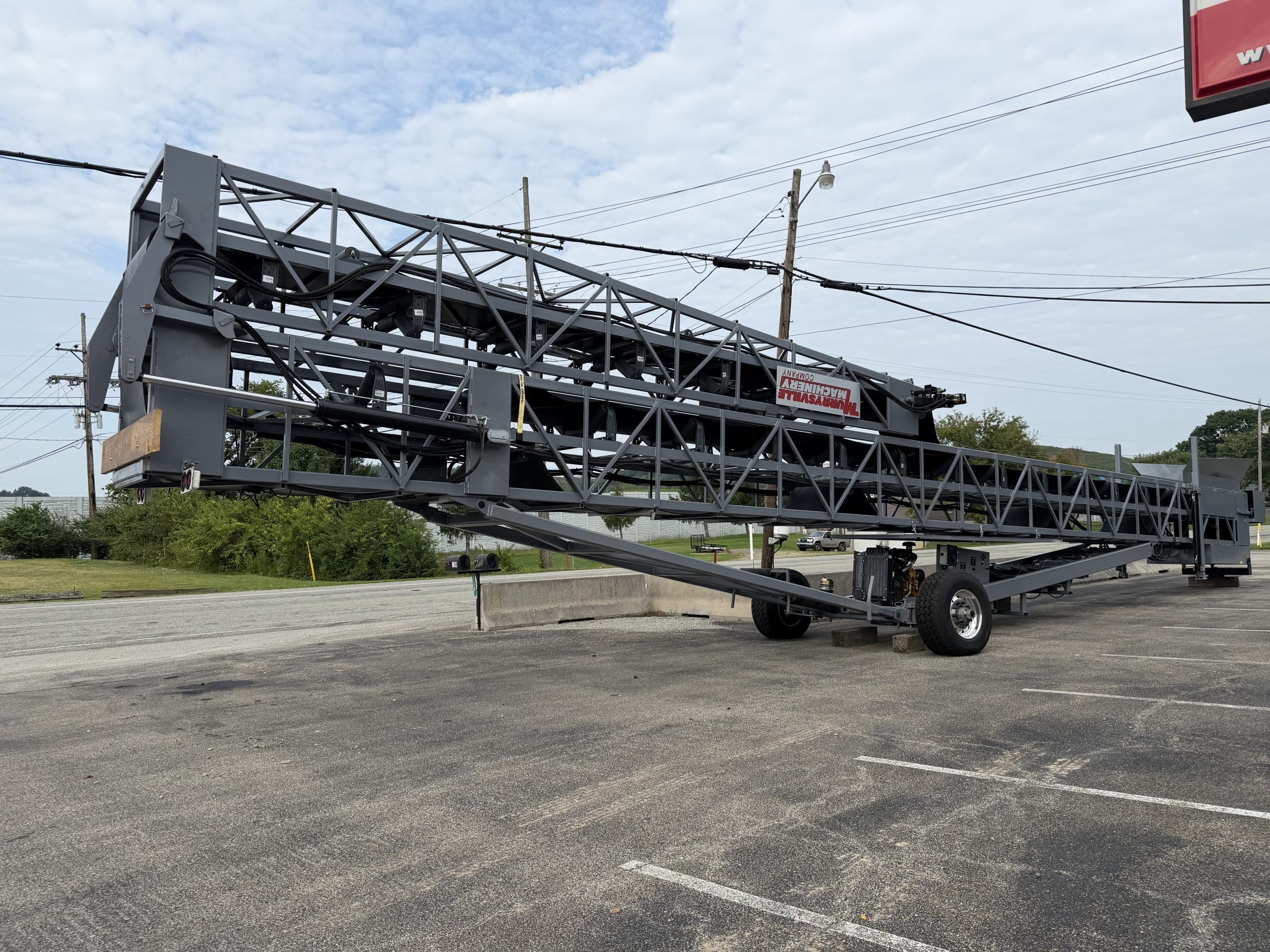

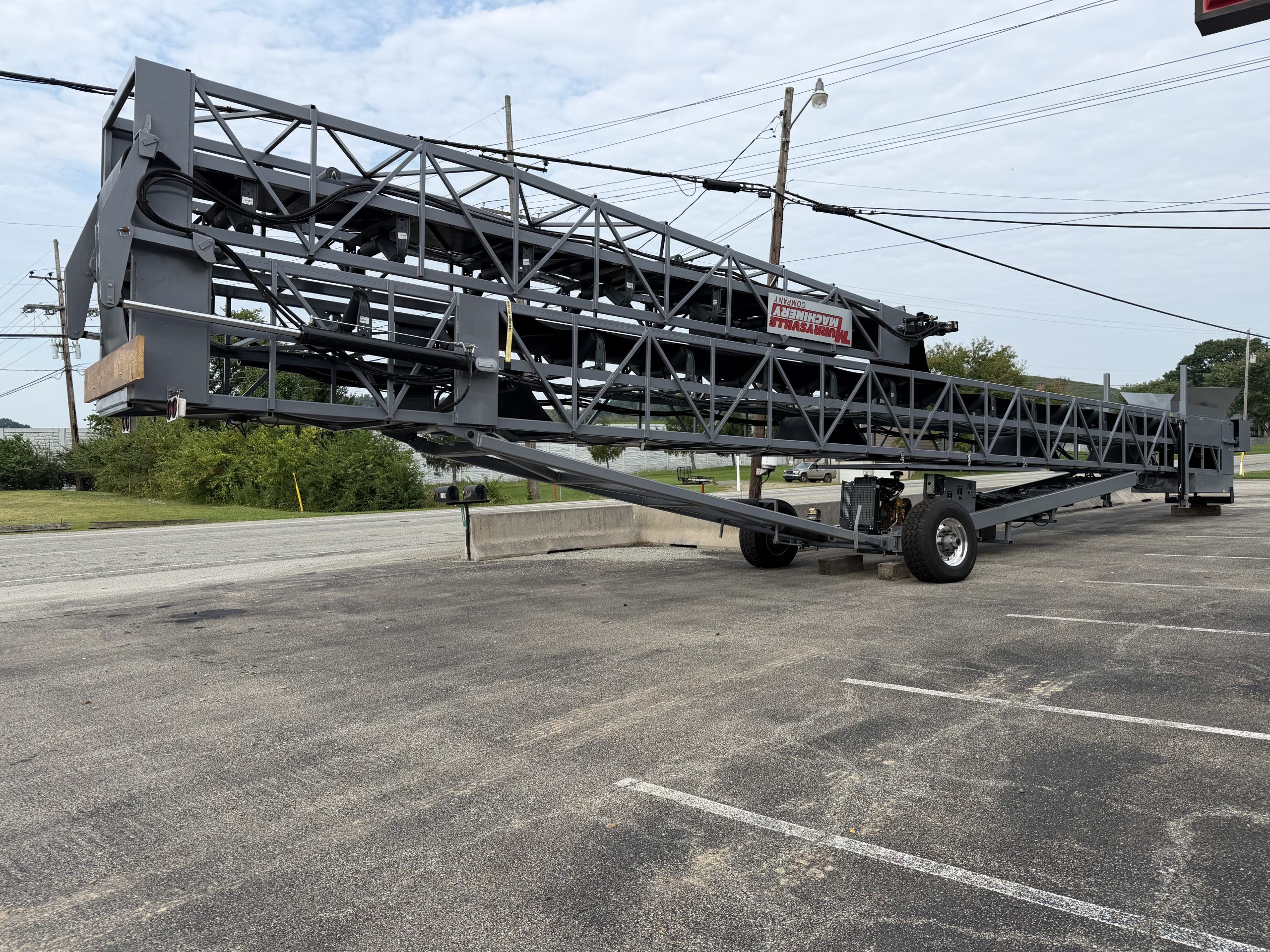

36″ x 100′ Wheeled Radial Stacker

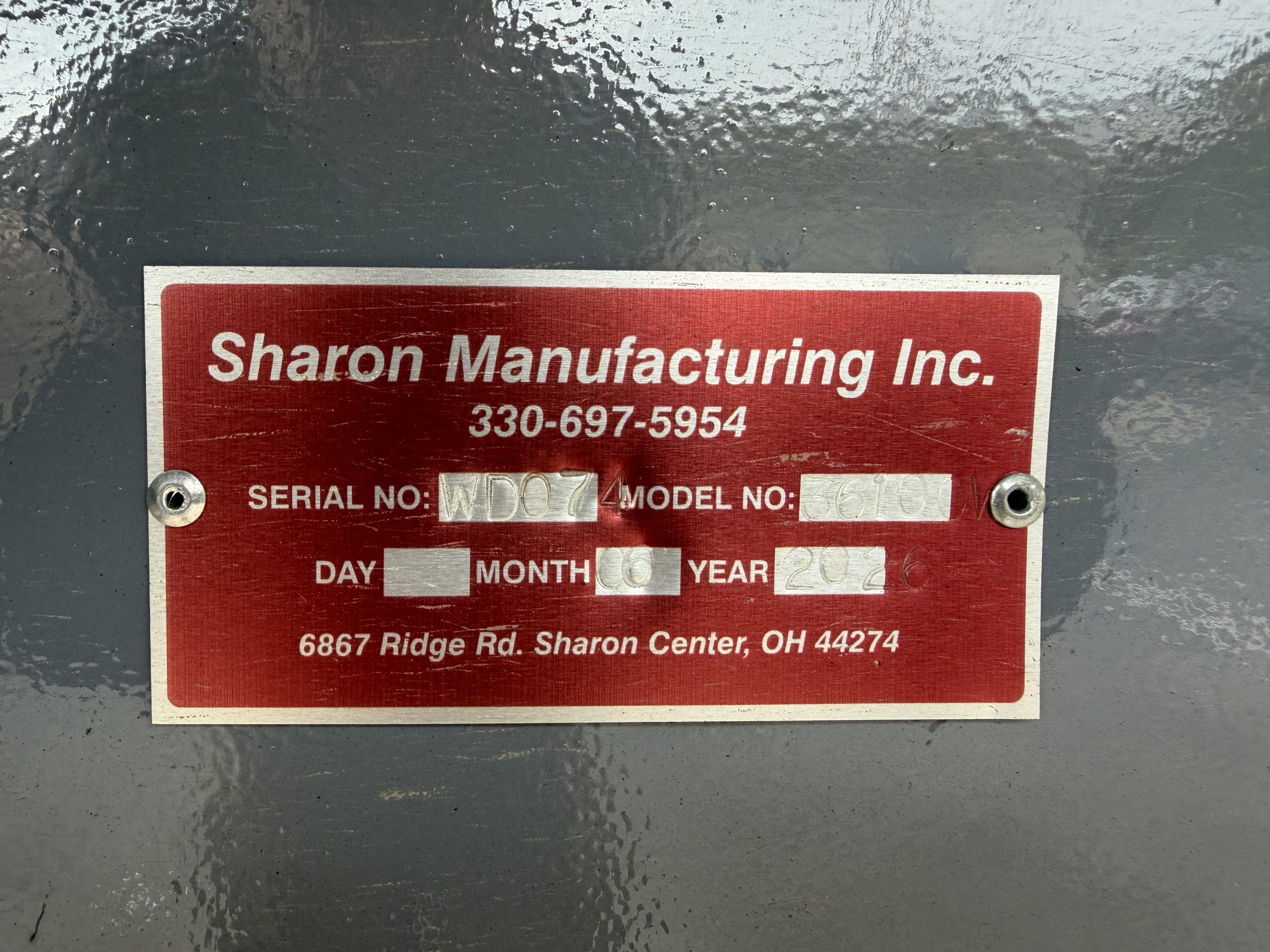

Serial # WD074 HOURS: 0
36″ X 100′
Features
- 36” Wide x 100’ Long Conveyor
- Heavy Duty lattice frame main conveyor, tubular undercarriage
- Caterpillar C2.2 – 74 Hp Diesel Powerpack
- 85 Gallon Hydraulic Tank
- 50 Gallon Diesel Tank
- Twin OMV500 Hed Pulley Drive Motors
- 2 Ply 220 PIW – 1/8 x 1/16 belt with Flexco R5 and Hinge Pin Hydraulic Top Fold
- Hydraulic Raise and Lower Ground Level Greasing
- Telescopic Axle Extensions and Radial Swing Wheels
- Super Single 385/65 R22.5 Tires
- 40’ 6” Total Height of stockpiling with counter weighted tail section and incorporated king pin
- Contoured hopper for optimum positioning and less material sticking
- Rated Capacity – 600 tons per hour
- Weight – 27,700 lbs.
Transportation Dimensions
- Length: 54′ – 9″
- Width: 9′ – 5″
- Height: 11′ – 6″
