Description

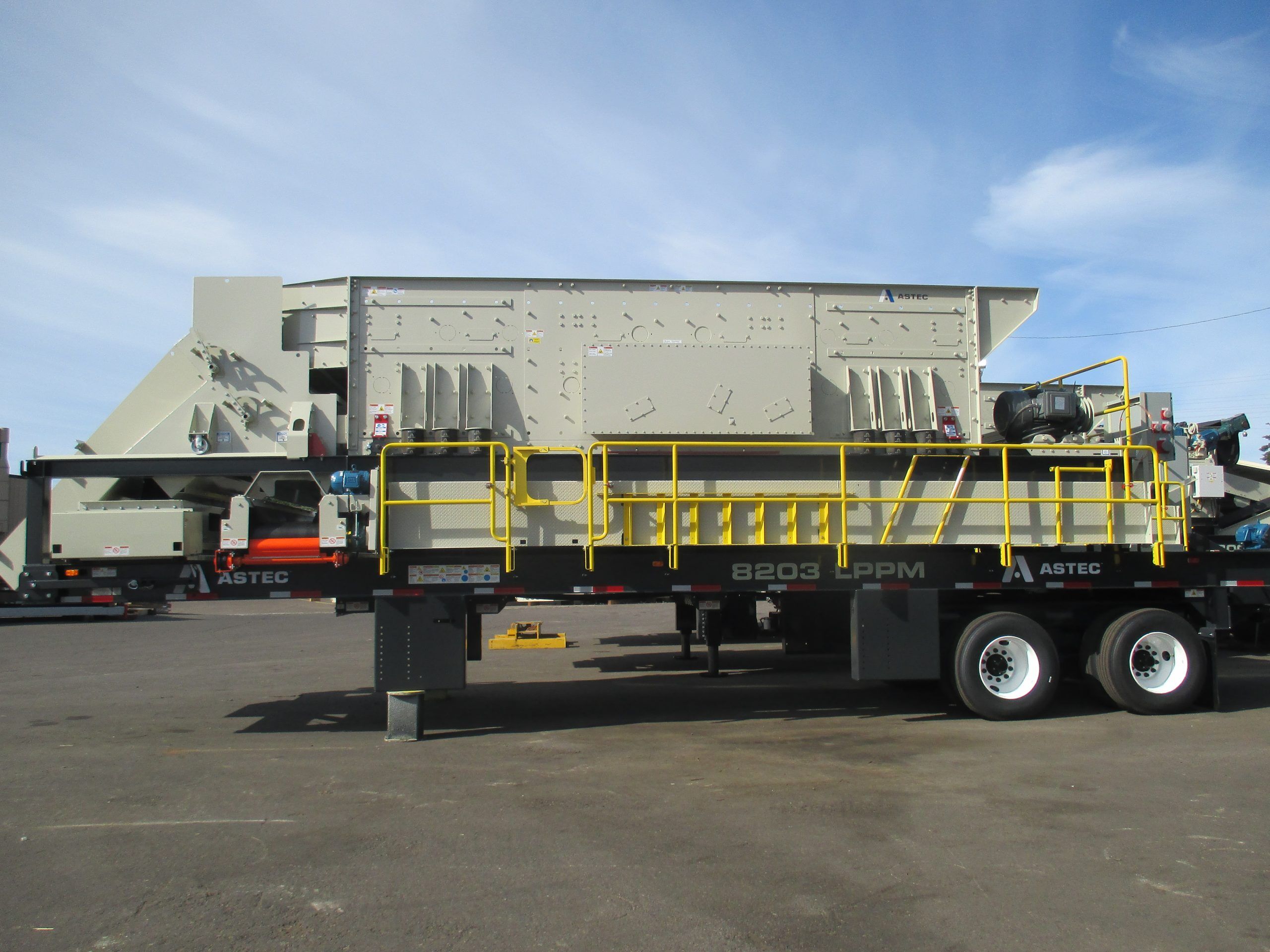

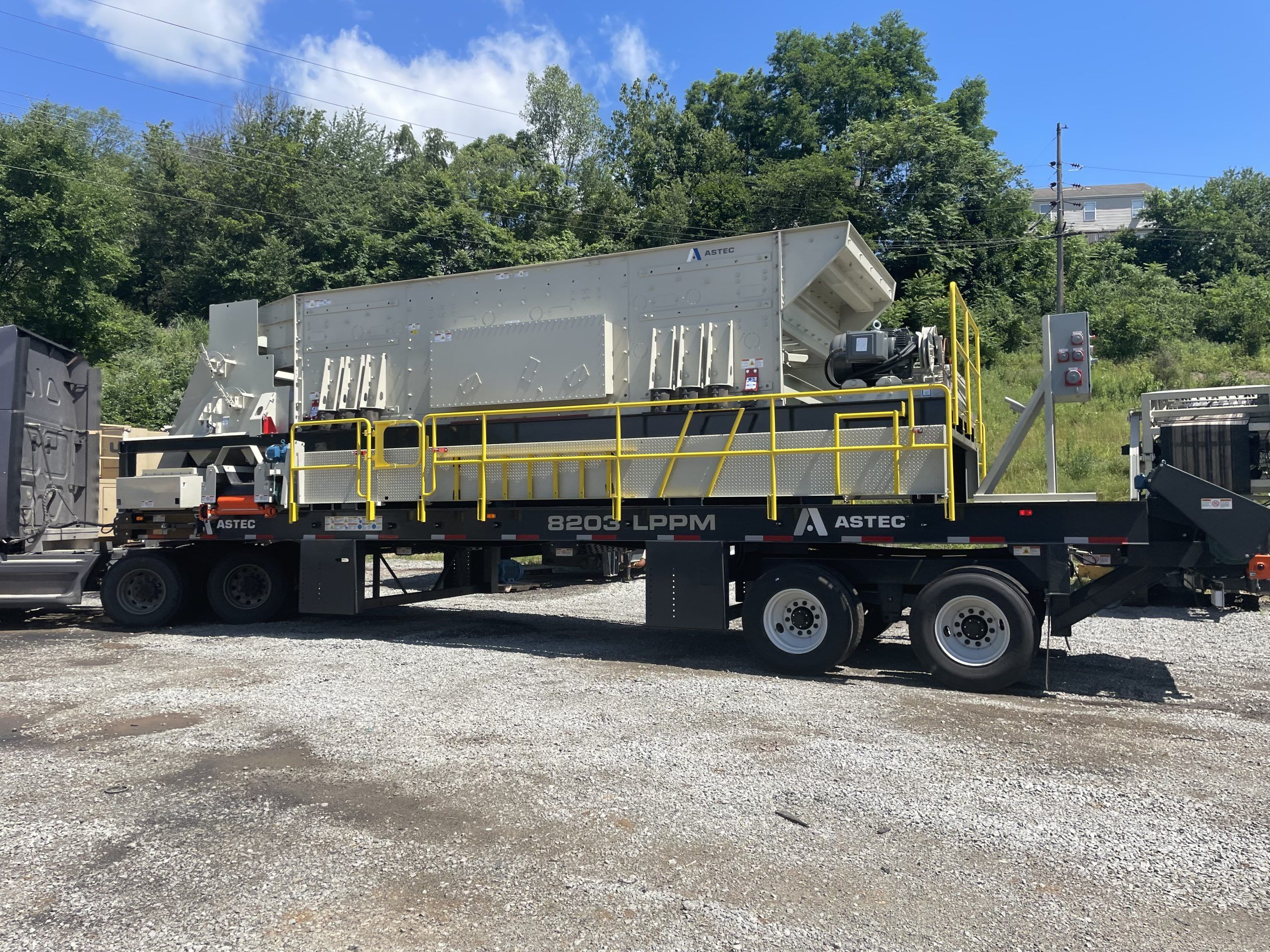

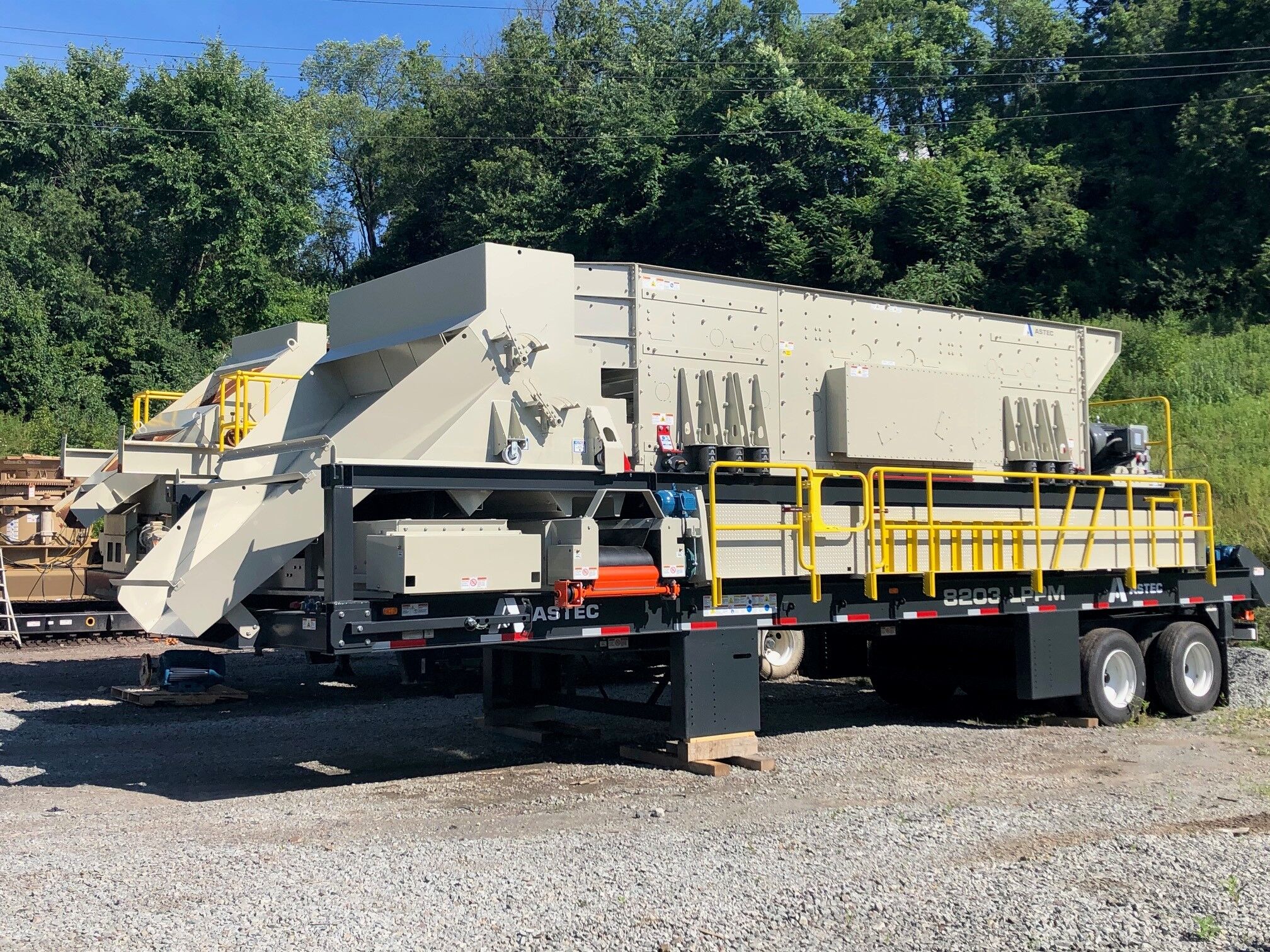

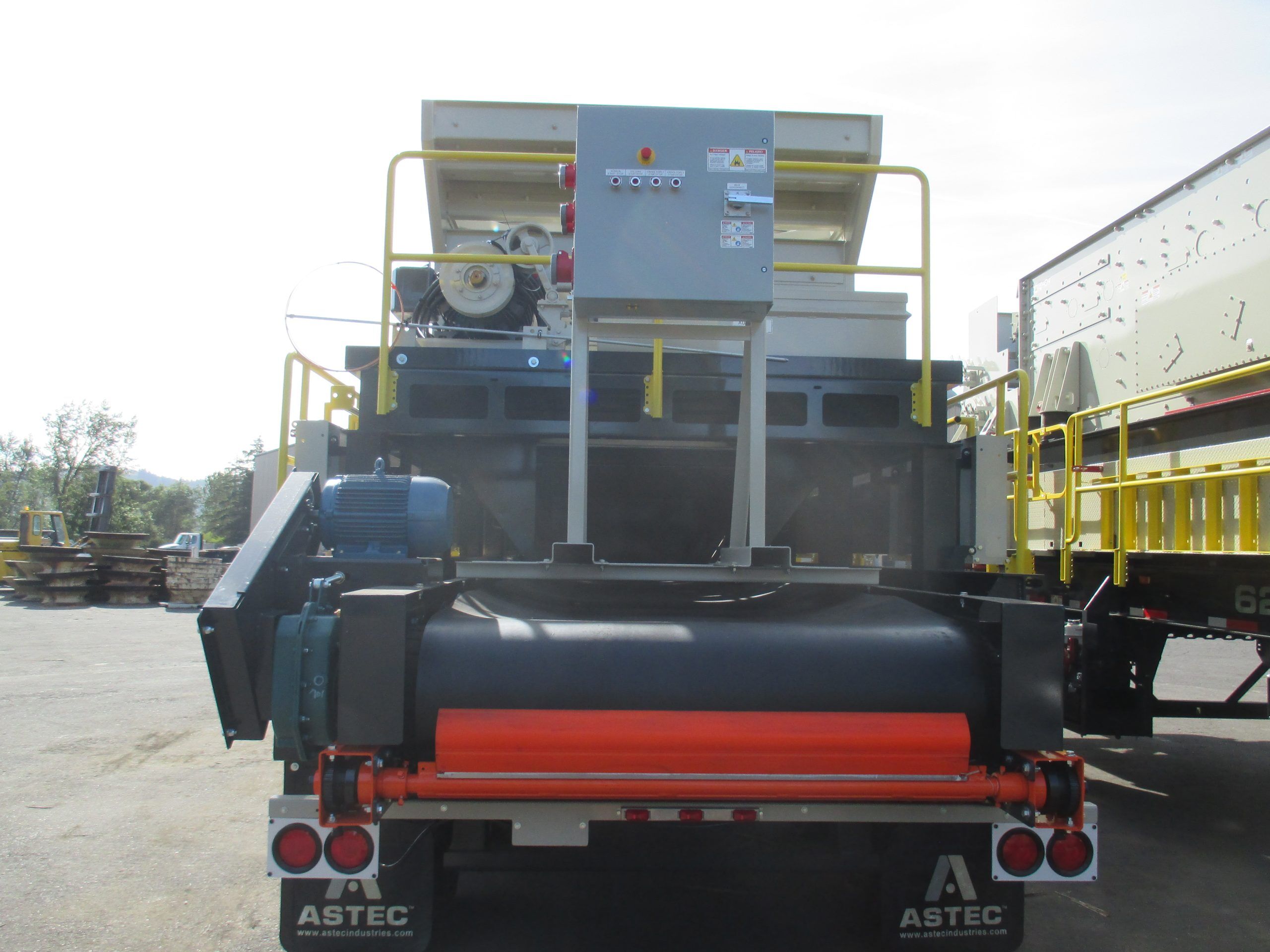

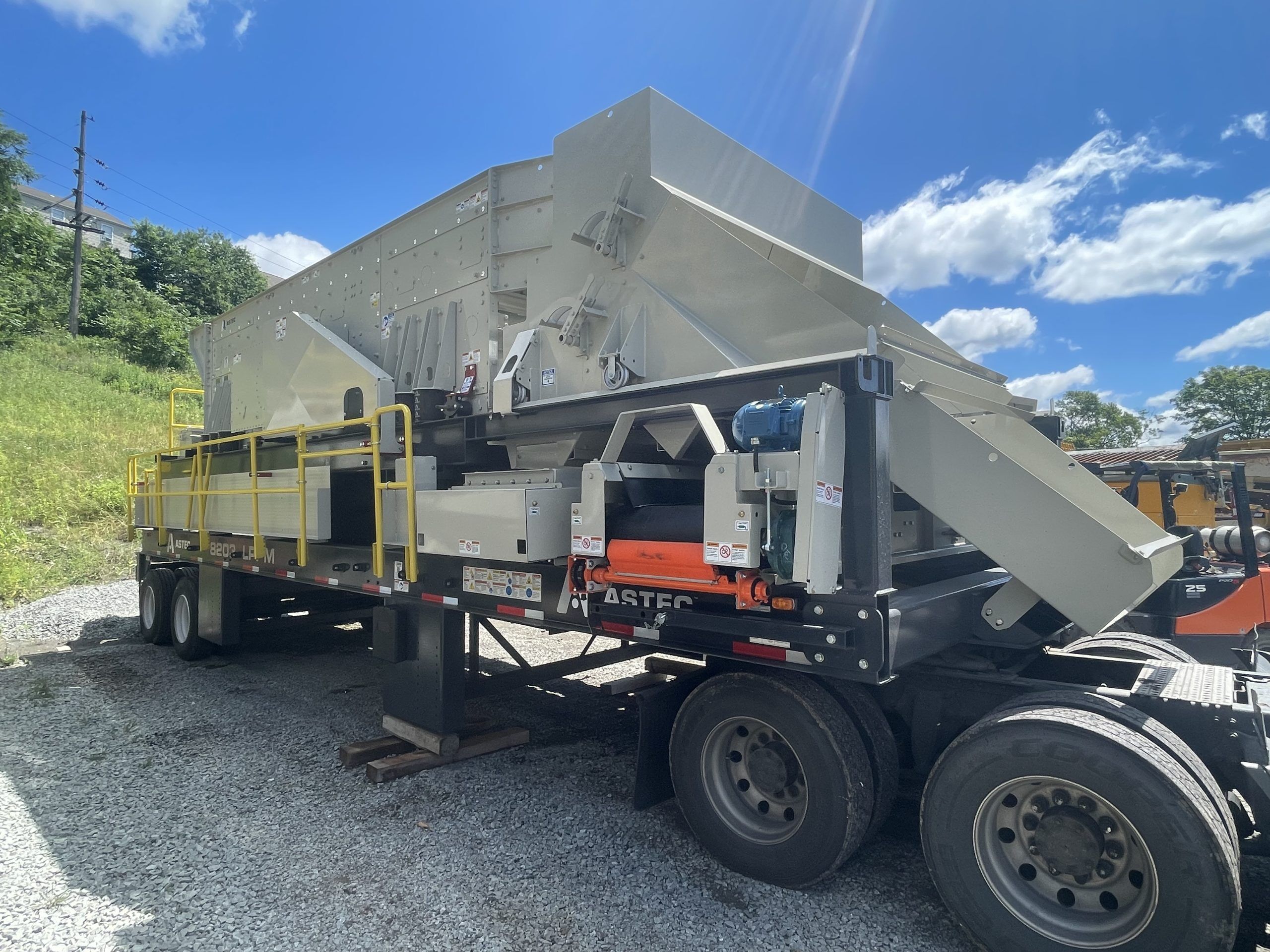

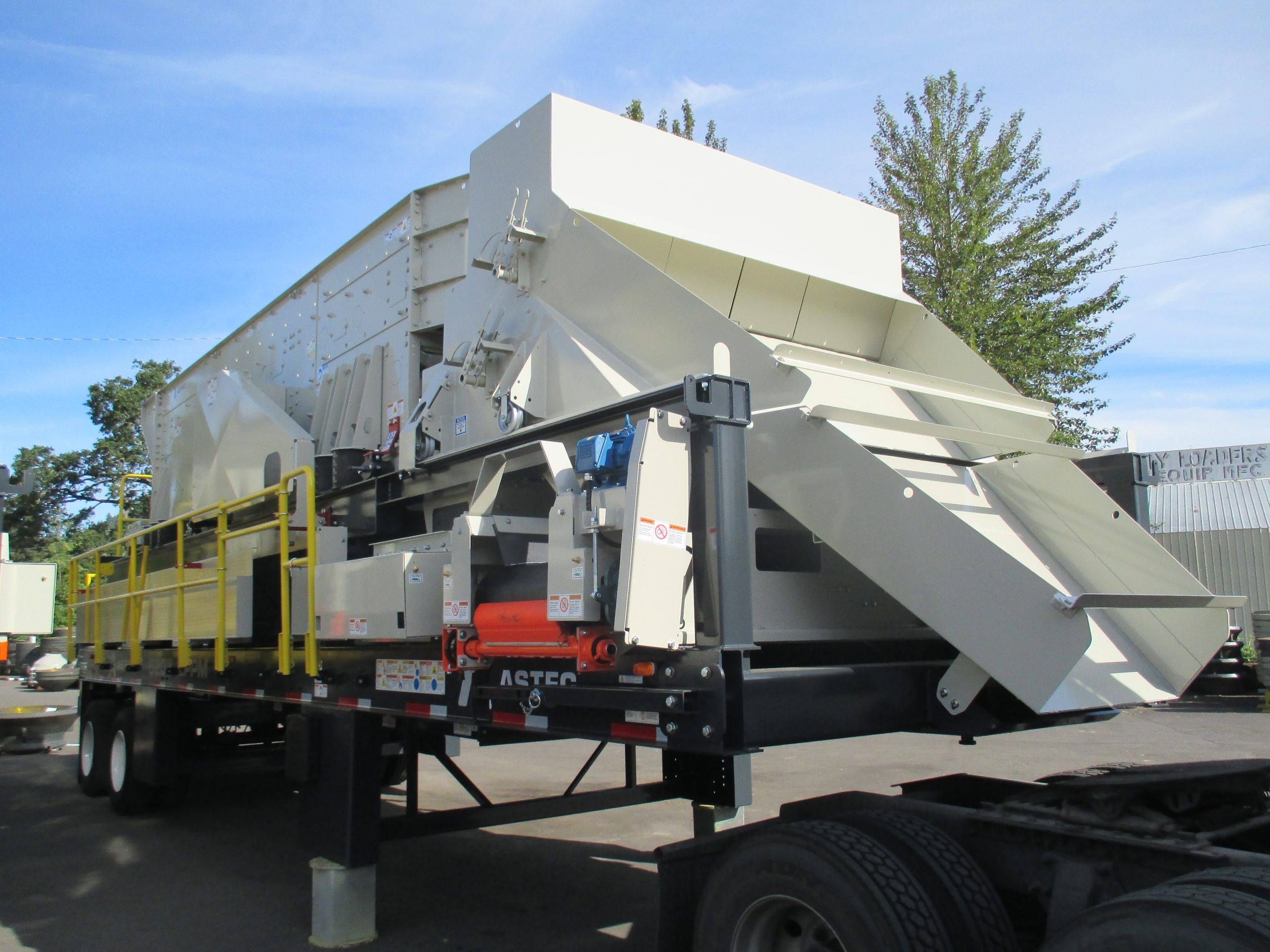

2026 Astec 8203LPPM Portable Screening Plant
Serial# P261940 HOURS: New
8203-38LP Screen
- 8’ x 20’ triple deck
- Aggressive stroke triple shaft horizontal
- Fully adjustable timing angle, stroke length, and stroke speed to fit most applications
- 60hp 1,200 RPM TEFC electric motor
- Bolt-on feedbox with ¼” AR liners
- Fully contained oil lubrication assembly
- Rubber marshmallow springs reduce basket stress
- Multiple deck configurations
(2) Under Screen Conveyors
- 60” under screen conveyor
- Grade II, 330 3 ply belting
- 10hp TEFC electric motor
Discharge Chutes
- Straight discharge chutes for all decks
- AR lined
Chassis
- Heavy-duty structural I-beam
- Triple axle Hutch suspension
- Under screen collection hopper
- Fold down catwalks on both side of the plant
- Fifth wheel pin
- Eight jacking pads
- Air brakes
- Stop, turn, tail and running lights
- 11.00×22.5 radial tires
- Mudflaps
- Safety guards and gates
