Description

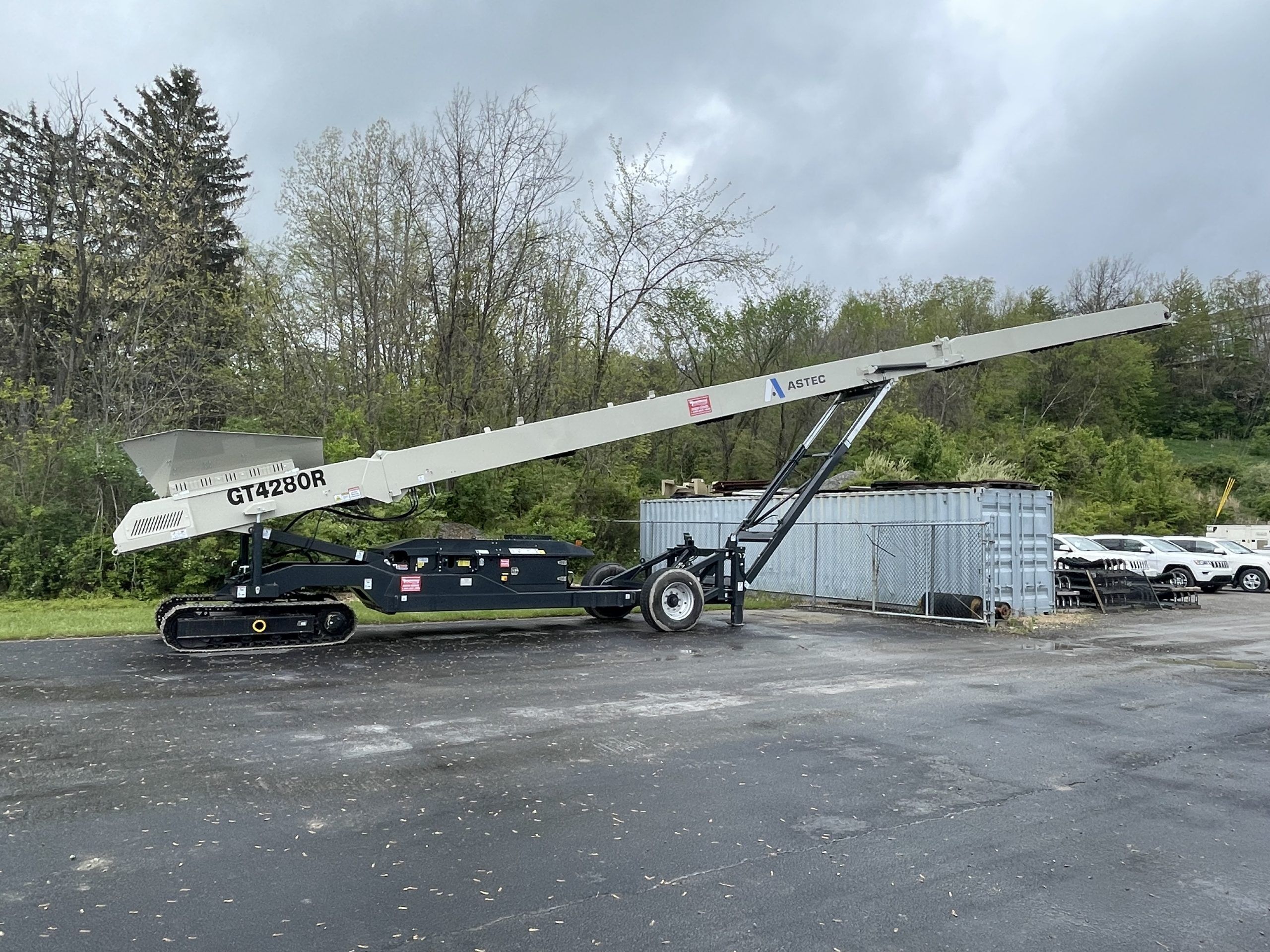

2023 Astec GT4280R Track, Radial Stacking Conveyor

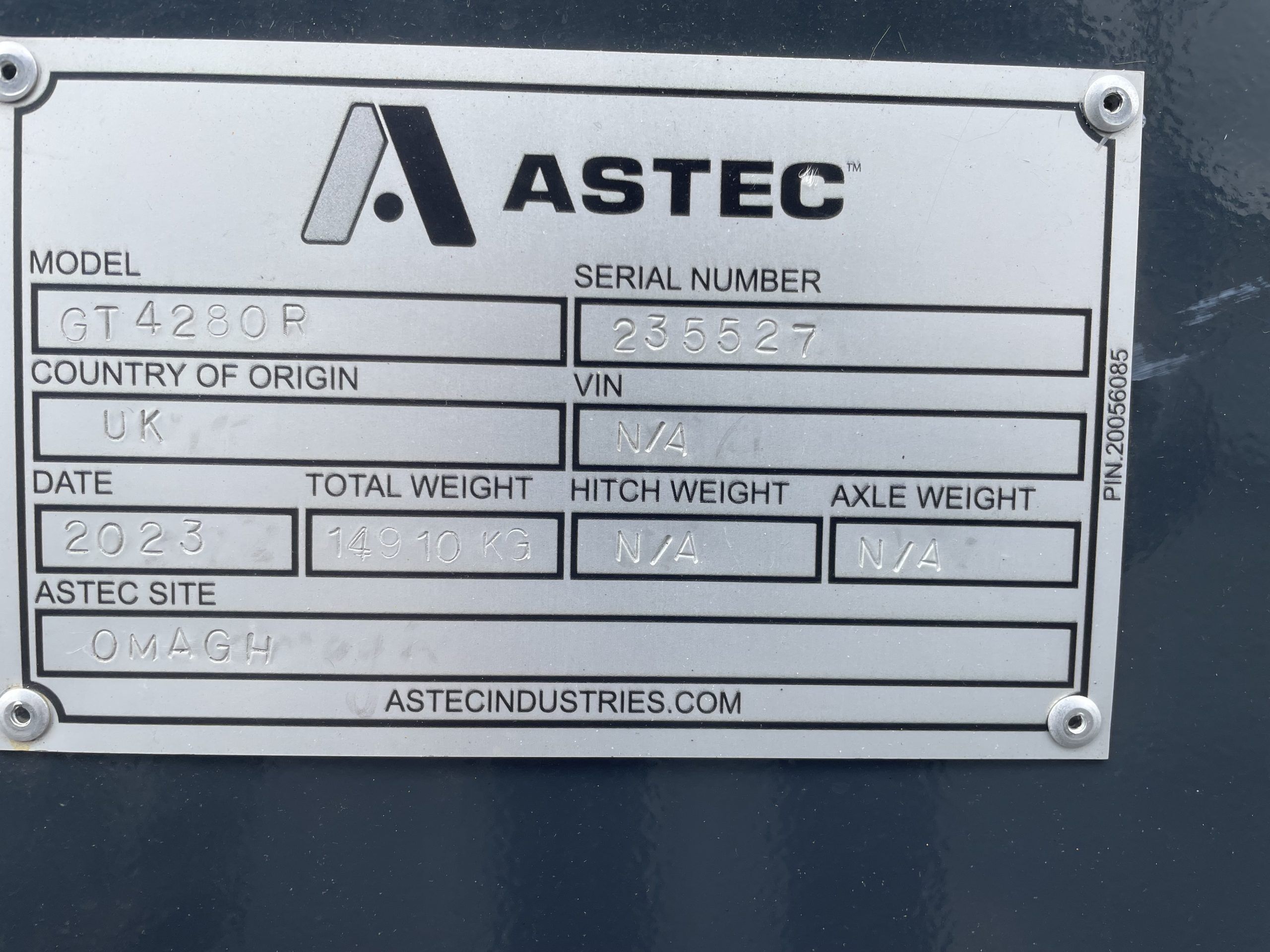

Serial # 235527 Hours: New
Main Conveyor
- 76’-8” (23.5m) long x 42”(1050mm) wide
- Variable angle Troughing Rollers. 3 Roll set x 4” (102mm) dia.
- 6” (150mm) Disc return rollers.
- 11” (280mm) Tail pulley complete with self-cleaning plow
- Scraper
- 13” (330”) Head pulley
- Primary spring mounted face scraper
- Impact center rollers in feed boot
Frame
- Heavy Duty 21”(540mm) side frame constructed of formed plate
- Fully enclosed power unit with hinged access doors
- Hydraulic folding head section as standard
- Manual folding tail section
- Hydraulic raise/ lower head and tail section
- Heavy duty track mounted Chassis for complete mobility
Plant Capacity
- Up to 440 USTPH (400 MTPH). (Capacity will vary with
conditions)
Power and Hydraulic
- Caterpillar 2.2, 50Hp (36 kW), EU STAGE 111B / TIER 4
- 42 gallon (160 liters) fuel tank. Lockable with side mounted level gauge.
- 66 gallon (250 liters) hydraulic reservoir with in line return filter. Lockable with side mounted level gauge.
- Engine mounted hydraulic pump to operate all machine functions.
- Hydraulic operated crawler tracks with pendant control for
- Machine relocation.
INCLUDED OPTIONS:
- Wireless track remote.
- Impact bed at feed in area.
- Dust cover.
- Full length skirting
