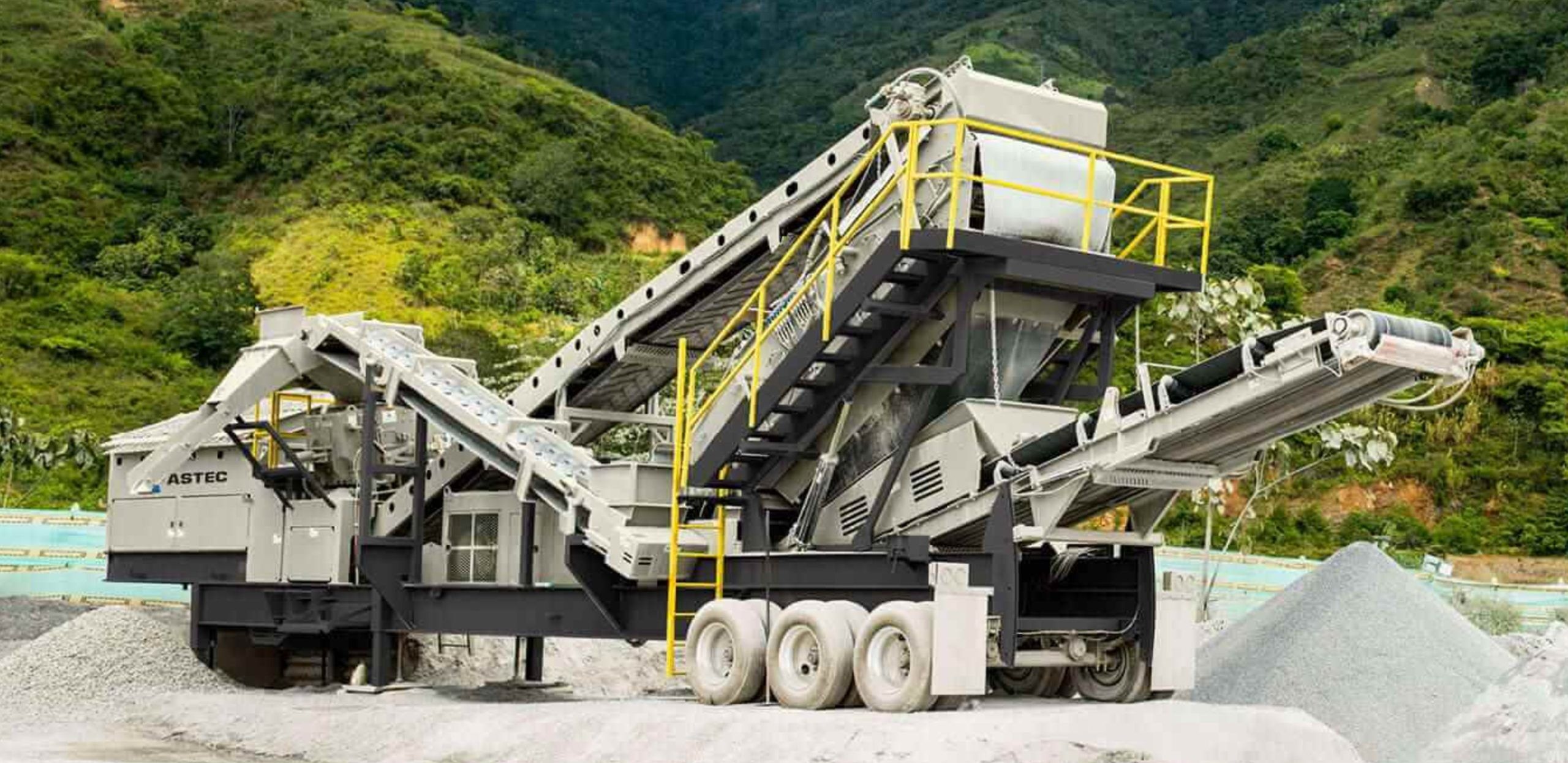

A large feed opening and a high-performance MPR rotor make these impact crushers well suited for recycle and aggregate processing applications. With up to 30% more uptime and 25% more production than competitive models, these plants deliver exceptional performance.
| Portable HIS Impact Crushers | ||||
| Model | Dimensions – HxWxL (ft) | Total Weight (lb) | Max Feed Size (in) | Screen (ft) |
| ProSizer® 3100 | 13.9 x 11.9 x 66.4 | 82,000 | 6 | 2612 HF |
| ProSizer® 3600 | 13.5 x 11.8 x 78.1 | 125,100 | 12 | 3.3 x 14 VGF 2618V HF |
| CS4250 | 13.3 x 11.9 x 48.7 | 94,000 | 21 | 4.2 x 20 VGF |
| CS4250CC | 13.9 x 12.0 x 69.0 | 119,650 | 21 | 4.2 x 18 VGF 5 x 16 x 2 deck inline screen |
| CS5260 | 13.7 x 11.9 x 54.0 | 127,120 | 24 | 4.2 x 20 VGF |
| SS4250 | 14.5 x 11.9 x 48.8 | 99,390 | 8 | 6 x 20 x 3 deck inline screen |
| SS5260 | 13.6 x 11.9 x 50.0 | 110,840 | 8 | 6 x 20 x 3 deck inline screen |
| PA 6060PP-VGF | 15.0 x 11.5 x 52.9 | 180,190 | 40 | 5 x 20 VGF |
A large feed opening and a high-performance MPR rotor make these impact crushers well suited for recycle and aggregate processing applications. With up to 30% more uptime and 25% more production than competitive models, these plants deliver exceptional performance.
