Description

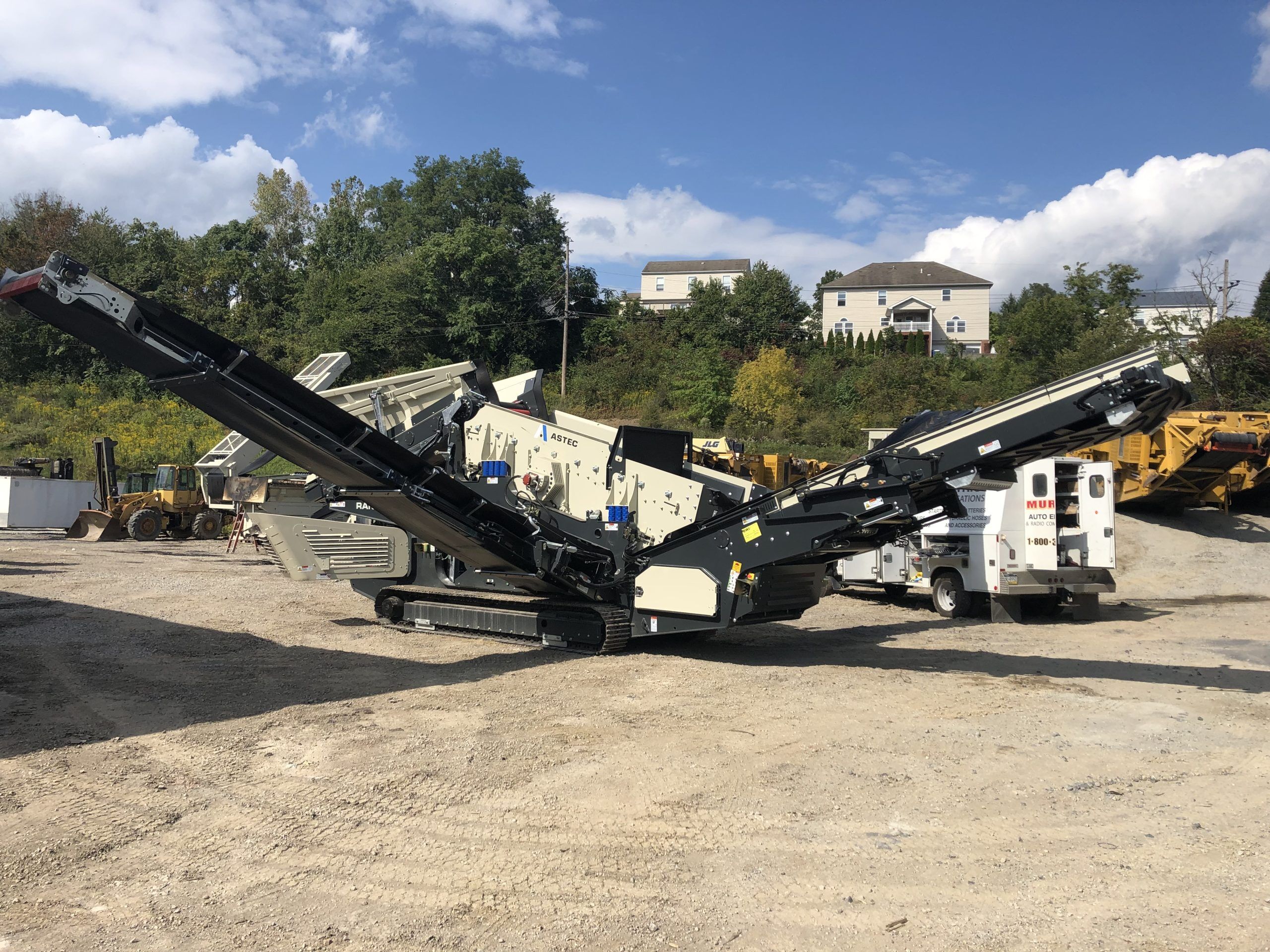

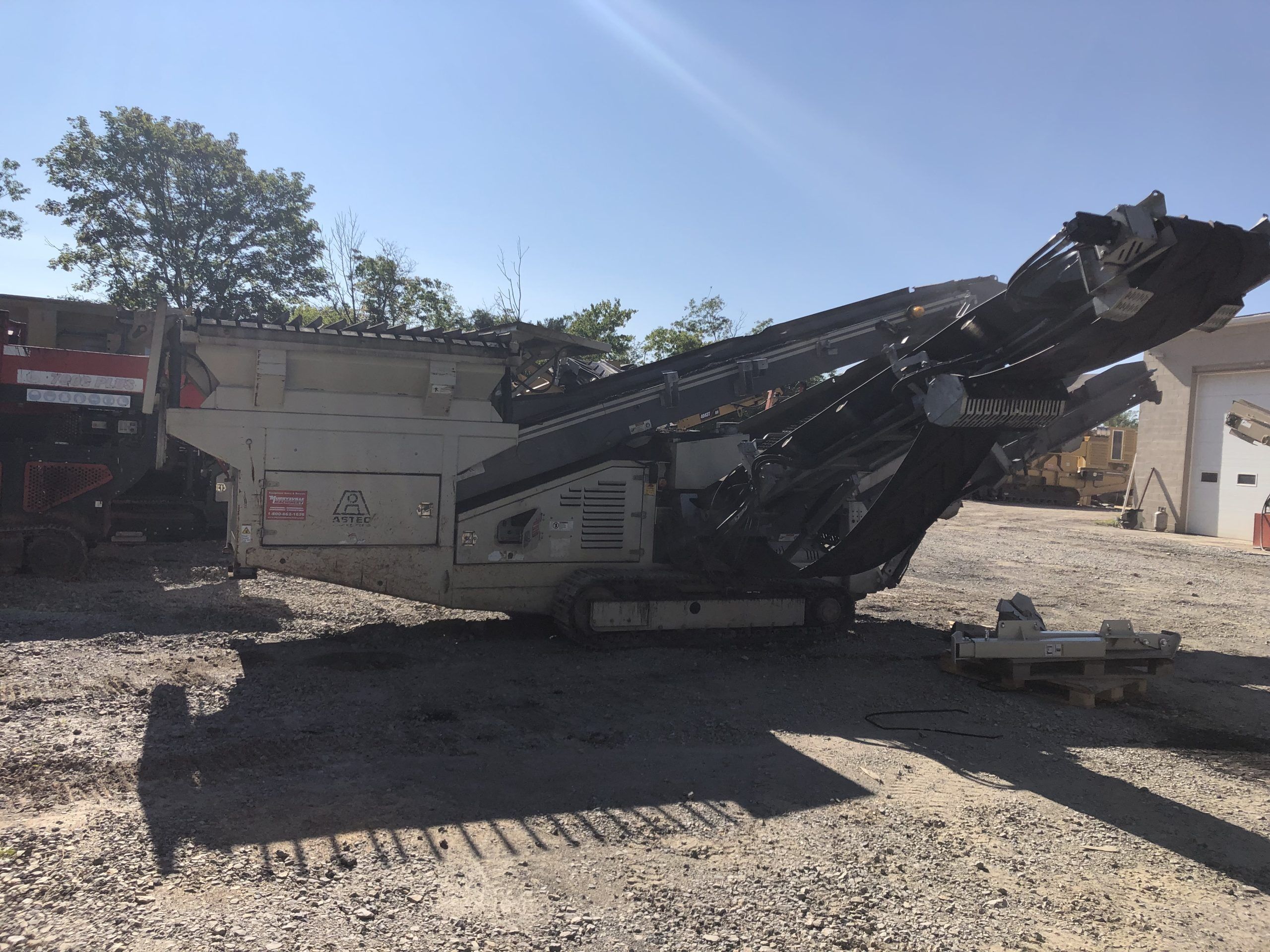

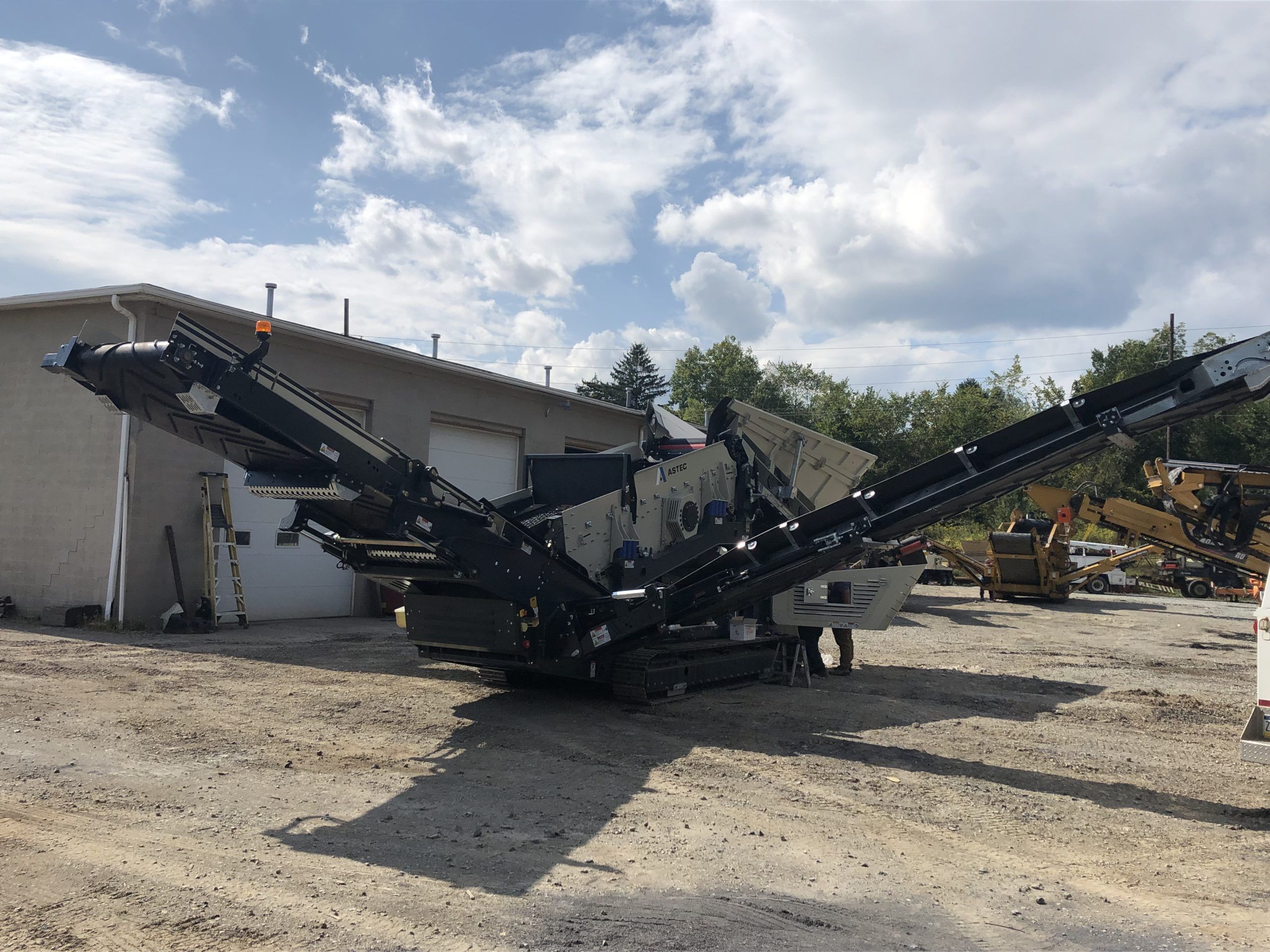

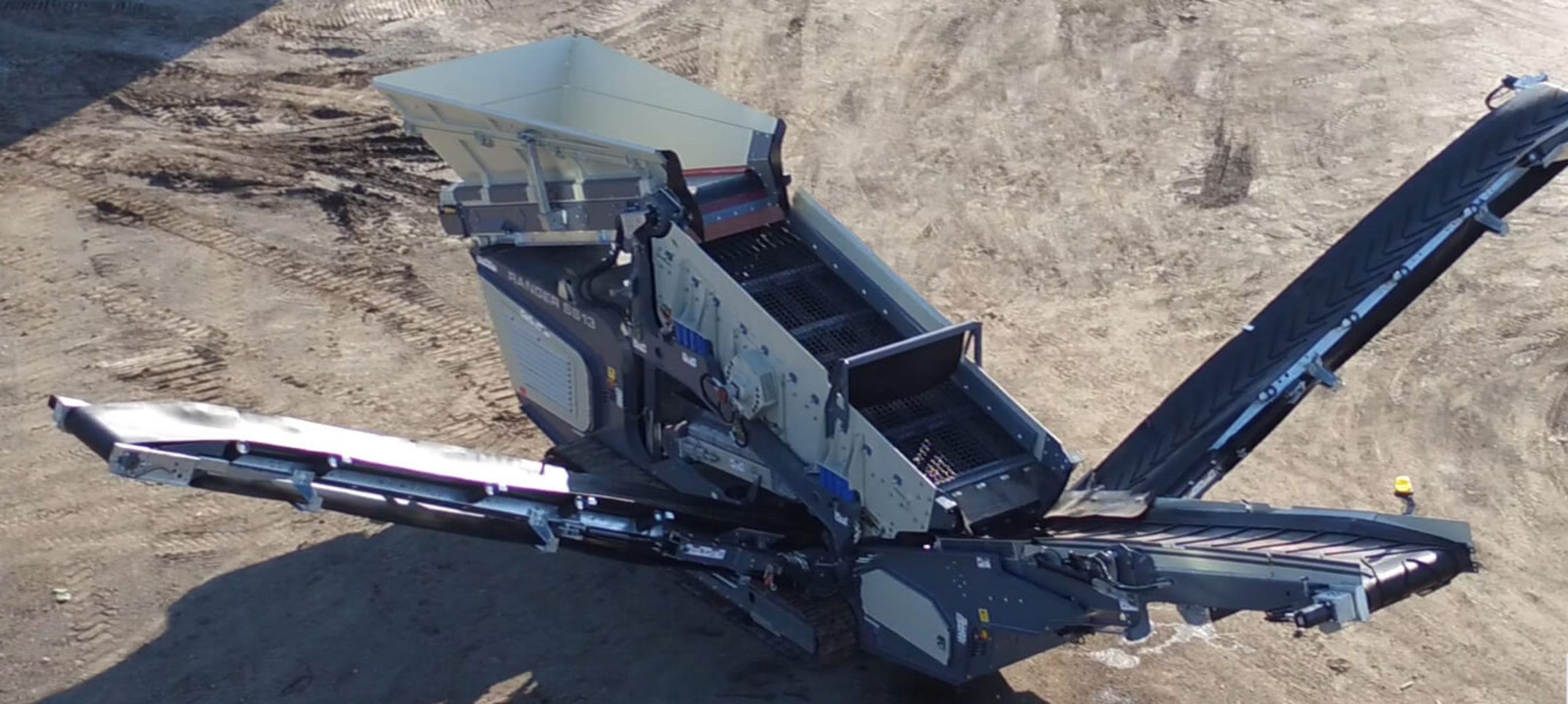

Astec Ranger SS13 Track, Scalping Screen
Serial # 235481 Hours: New
- Power Unit
– Deutz TD2.9 L4 74hp (55kw)
– 53 gal (200L) fuel tank
– 120 gal (450L) hydraulic oil reservoir - Hopper/Feeder
– 14’ 8” x 40” (4,470mm x 1,000mm) belt feeder
– Hydraulic drive with variable speed
– 9 cubic yard capacity
– Hydraulically lowering hopper sides for feeding and transport - Product Conveyors
– Two 28’ x 32” (8,534mm x 800mm) conveyors with swing out design
– Hydraulic drive with variable speed
– Chevron belt (midsized), smooth belt (fines)
– Discharge height: 11’ 10” (3,620mm) on midsized
– Discharge height: 12’ 4” (3,775mm) on the fines
– Variable speed on midsized conveyor - Underscreen Conveyor
– 8’ x 40” (2,438mm x 1,000mm) conveyor
– Hydraulic drive with variable speed
– Raises and lowers hydraulically to get access to screen mesh - Vibrating Screen
– Bolted, 2-deck, 2-bearing high vibration screen
– Screen box: 13’ 9” x 4’ 3” (4,191mm x 1,295mm) - Overs Conveyor
– 21’ x 40” (6,401mm x 1,000mm) conveyor
– Hydraulic drive with variable speed
– Discharge height: 10’ 6” (3,200mm)
– 2-in-1 overs conveyor
